Masterpiece Regis

Description

The Regis Masterpiece was developed as a cost no object reference stand mount loudspeaker, using many of the same design principles found in our Opus Two but within a more compact cabinet and without the twin side-mounted passive radiators.

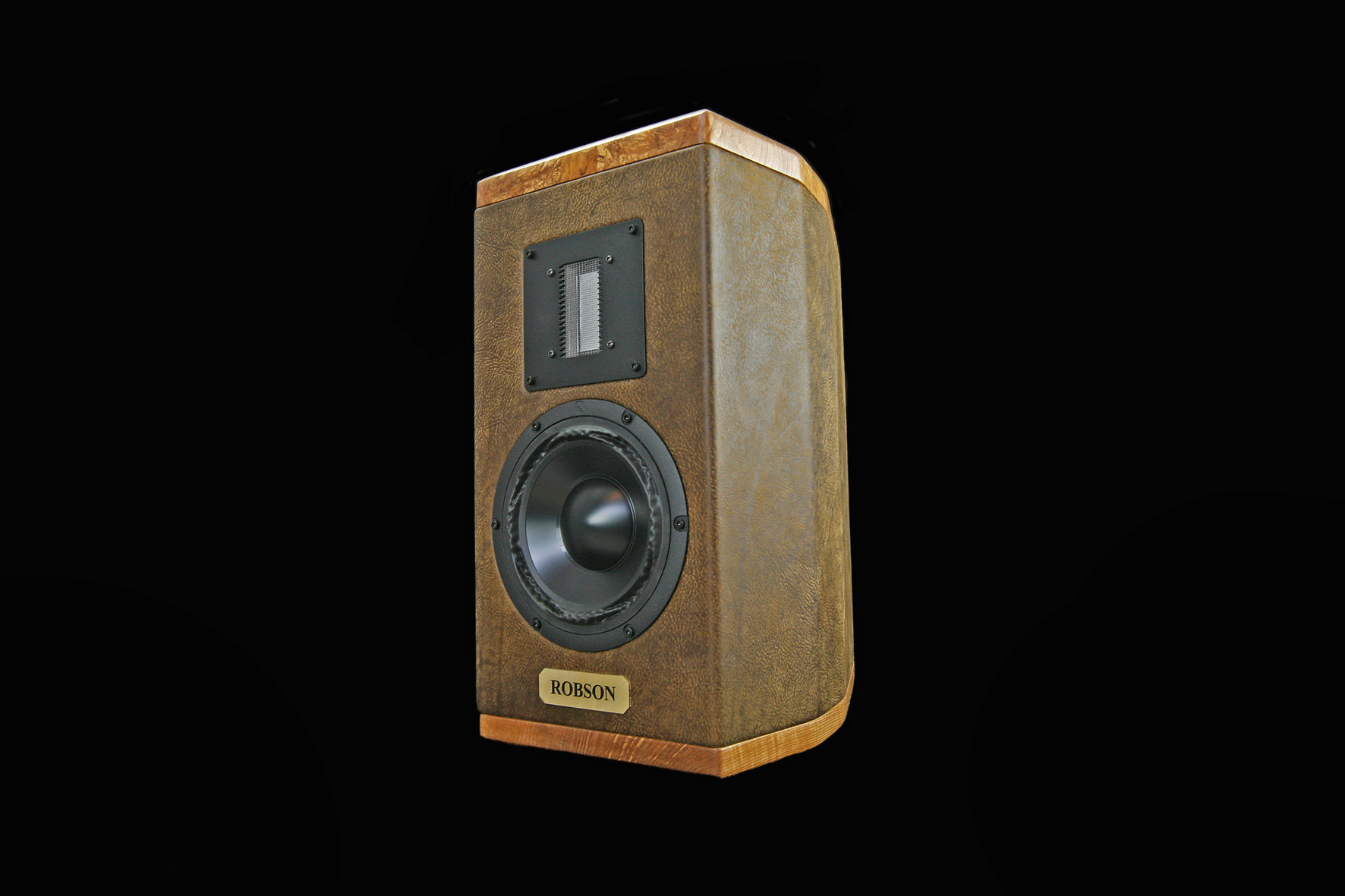

At the heart of the design is a 176mm Purifi anodised aluminium bass/midrange driver partnered with a precision RAAL ribbon tweeter. Both drive units were selected for their exceptional resolution, speed and low distortion, with the crossover, internal wiring and rhodium plated pole connectors carefully chosen and tuned specifically around them.

The cabinet uses a substantial 24mm Finnish Birch Ply matrix construction together with Mundorf “Angel Hair” internal damping to control unwanted resonance and help create an exceptionally open and spacious presentation.

The result is a compact reference monitor capable of remarkable resolution, precise imaging and a highly holographic soundstage, together with bass extension and scale that belie its size.

Regis Masterpiece features:
  • Purifi 176mm bass/midrange driver

  • Precision RAAL ribbon tweeter

  • 24mm Finnish Birch Ply matrix cabinet

  • Mundorf crossover components

  • Cryo treated internal wiring

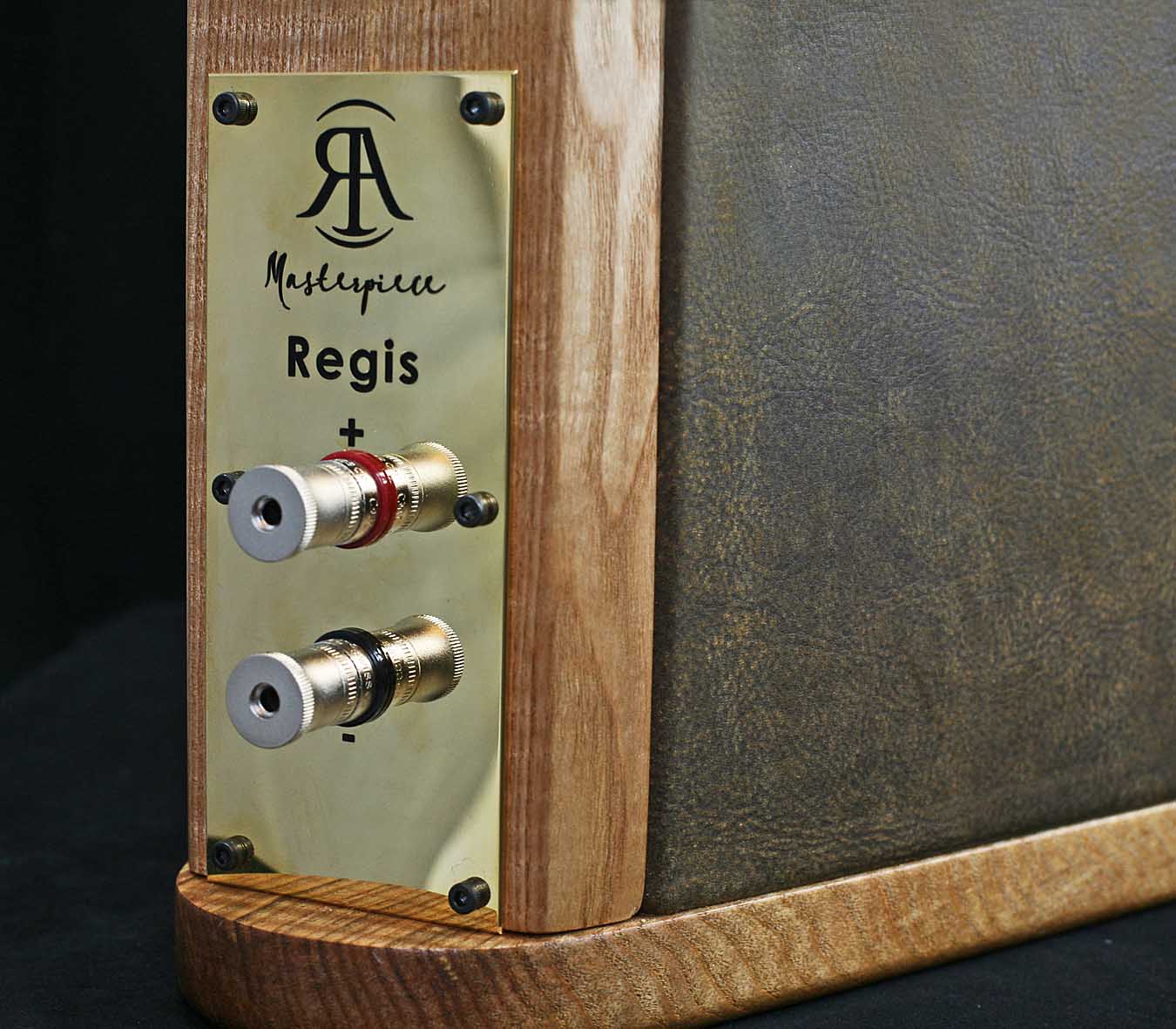

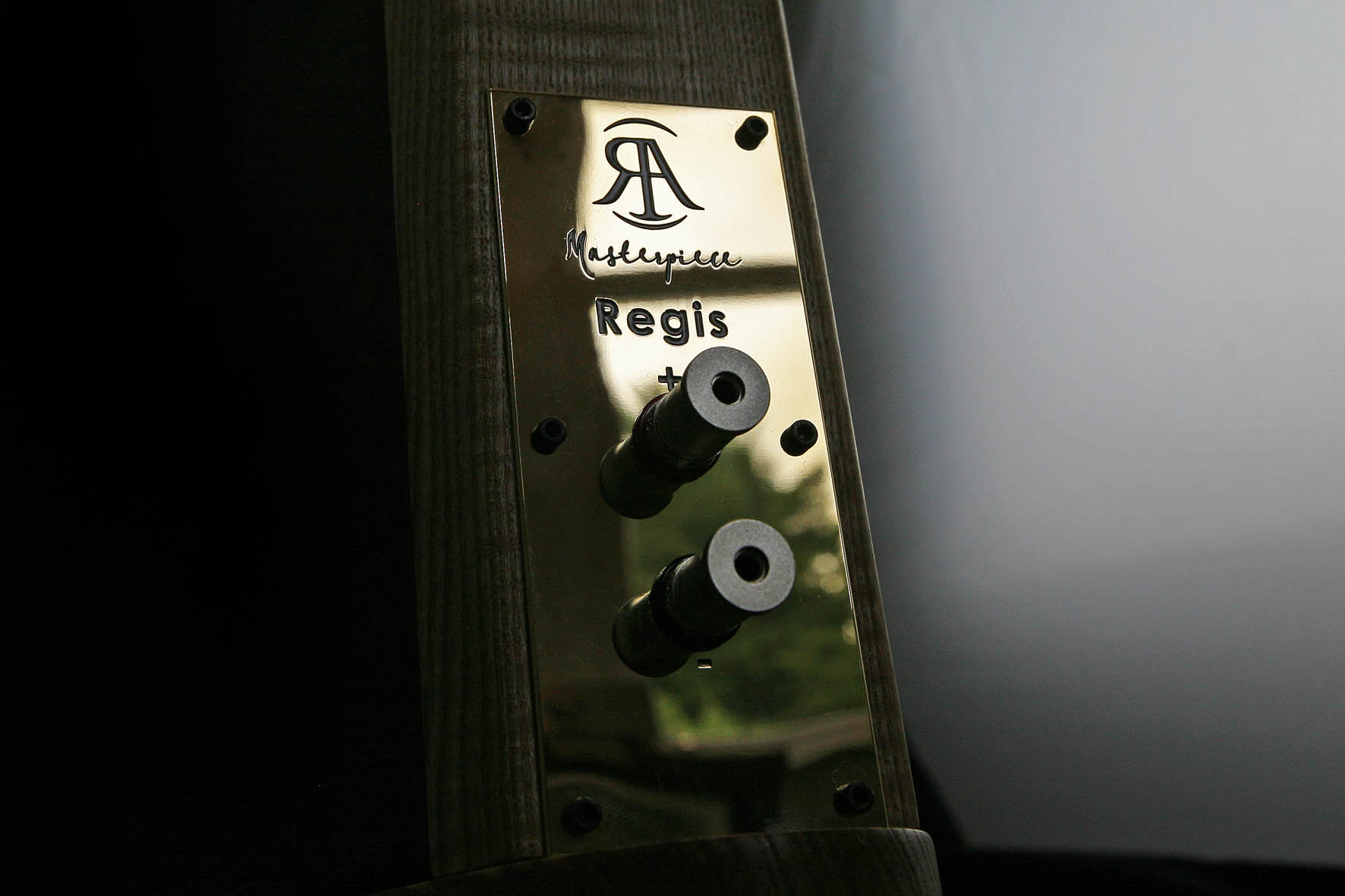

  • Rhodium plated pole connectors

  • Mundorf “Angel Hair” internal damping

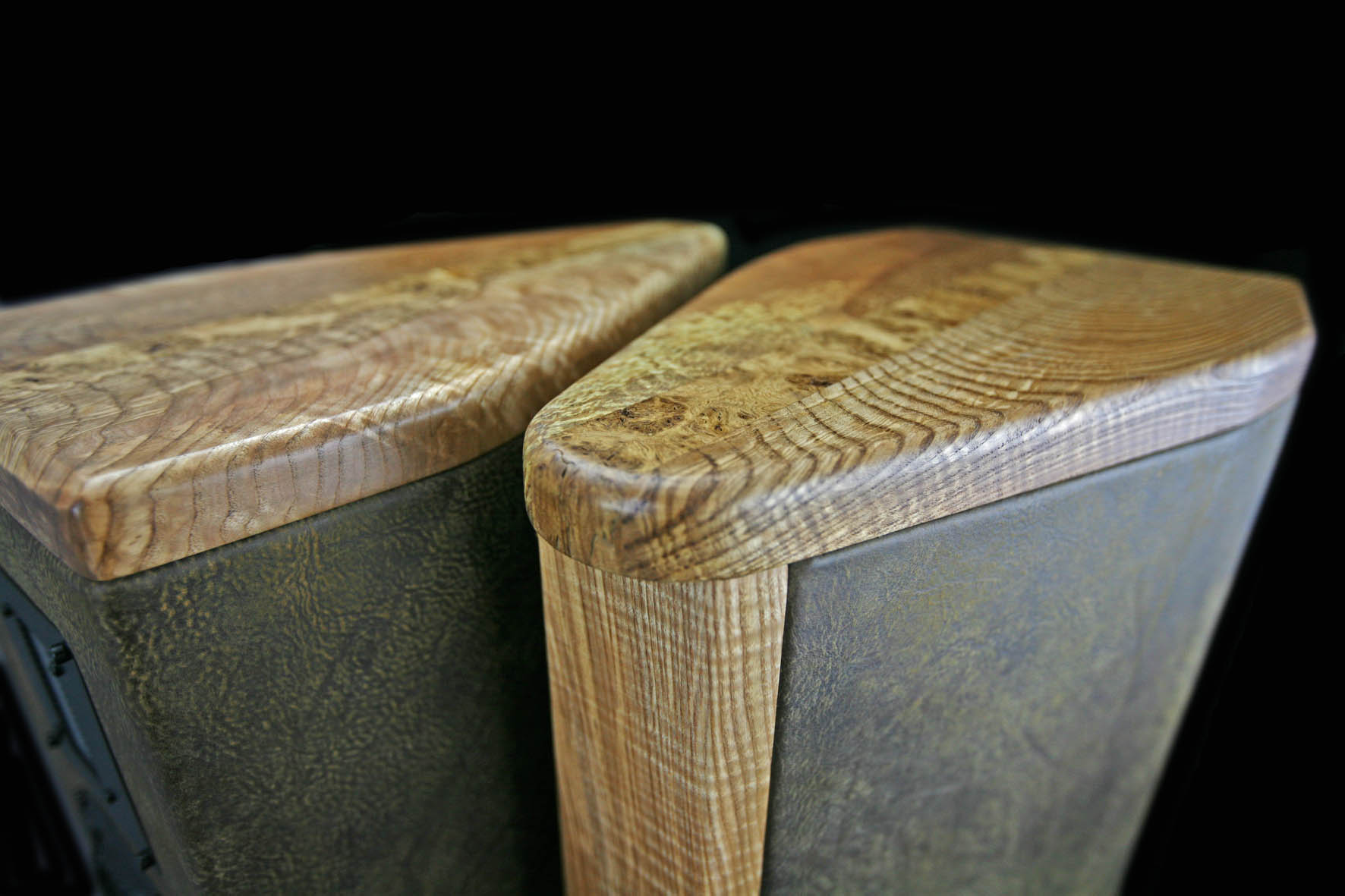

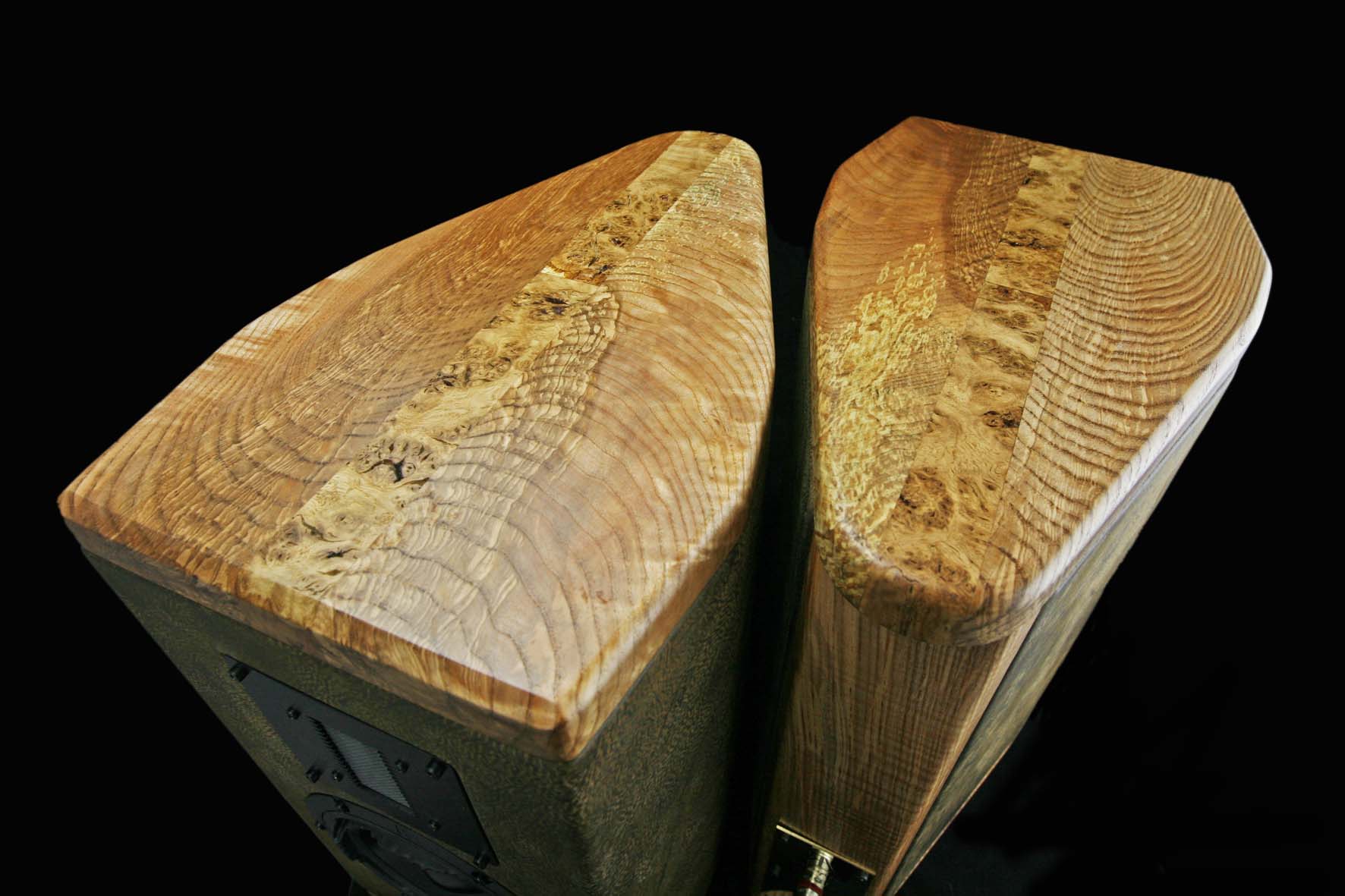

  • Bespoke hardwood and hide finishes available

The Regis Masterpiece has been designed to reveal improvements throughout the rest of the system, continuing to deliver greater resolution, scale and refinement as the quality of the associated equipment increases.

Gallery

Specifications

Technology 24mm Finnish Birch Ply matrix construction
Description 2 way, linear phase, Infinite baffle enclosure
Drive Units 1 x Purifi 176 mm Anodised Aluminium
cone bass/mid range unit
1 x Raal precision Ribbon Tweeter
Frequency Response 36Hz to 40KHz +/- 2dB on axis
Impedance 4 ohms nominal, 3.5 ohms minimum
Sensitivity 87dB spl at 1 metre on axis. 2.83V inputt
Crossover 2nd order bass roll-off
2nd order tweeter
Power Handling 150W peak un-clipped programme
Dimensions 440h x 250w x 400d (mm)
Weight 16kg
Finishes Standard finishes available American Black Walnut and black parchment hide.
Bespoke options available in various hides and hardwood.
Mundorf capacitor, Inductor and Cryo treated internal wiring as standard.
